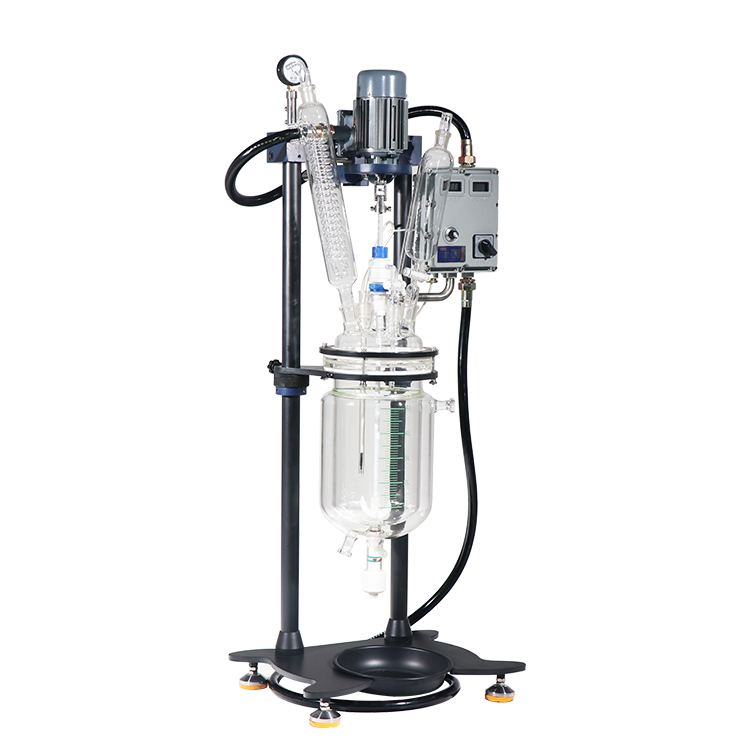

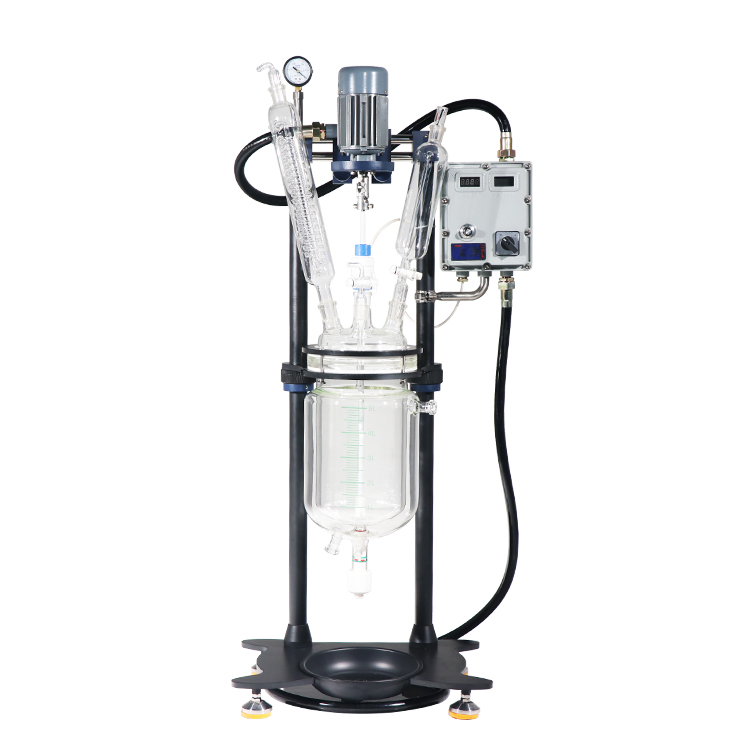

XYHGSF-1-5L Jacket Glass Reactor (EX)

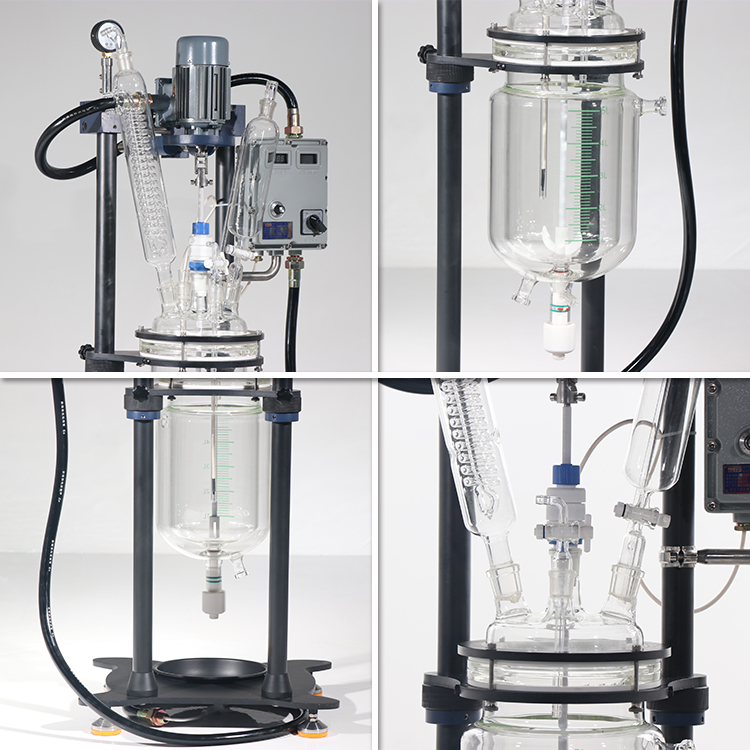

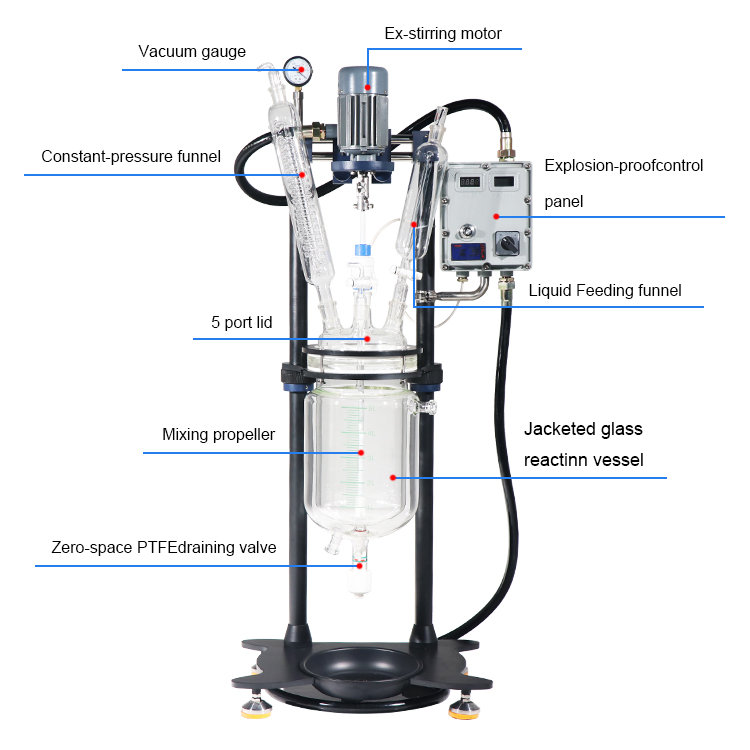

The double - layer explosion - proof small reaction kettle adopts a double - layer structure design. The inner layer serves as the reaction zone, which can hold the reaction medium for stirring reactions. The outer layer is a safety protection layer. The interlayer can be filled with cold and heat sources such as freezing liquid, hot water, and heat - conducting oil to achieve cyclic heating or cooling, precisely controlling the reaction temperature. Equipped with an explosion - proof motor and an explosion - proof control system, it meets the safety requirements of flammable and explosive working conditions and effectively eliminates the risk of deflagration. The kettle body is made of high - quality borosilicate glass (or suitable materials), featuring good chemical stability and strong corrosion resistance, allowing for direct observation of the reaction process. It has normal pressure/negative pressure reaction modes and supports operations such as reflux and distillation of the reaction solution. It is suitable for pilot - scale and small - batch production scenarios in fine chemicals, biopharmaceuticals, new material synthesis, etc., providing a safe, flexible, and efficient reaction environment for experiments and production.
