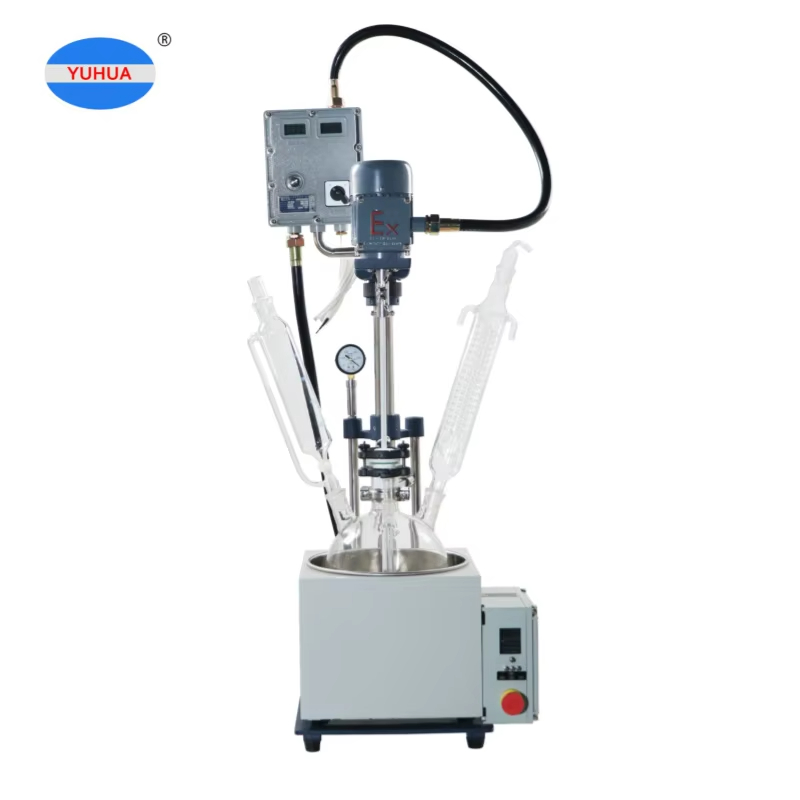

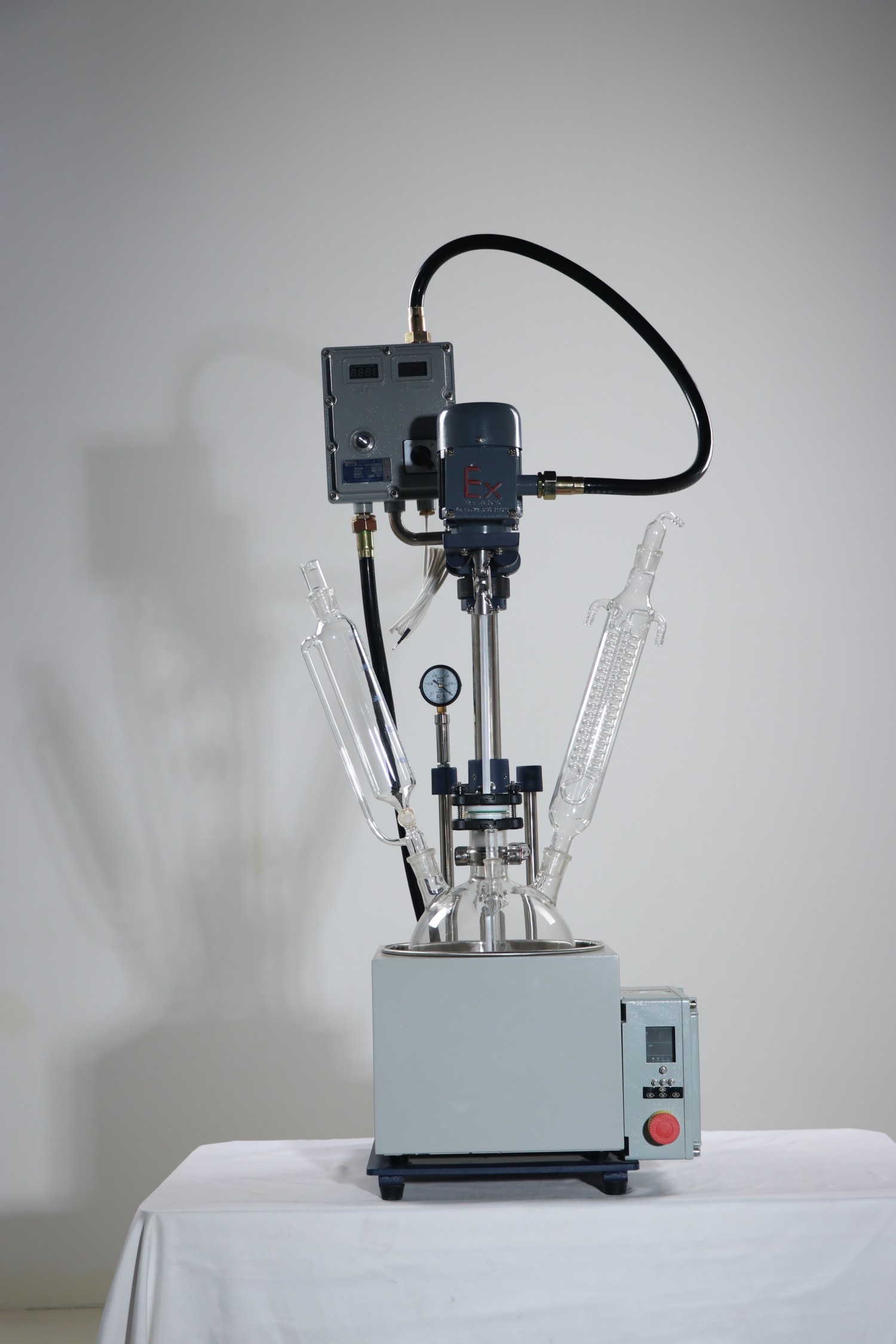

Single layer glass reactor
Product Discription
The single layer glass reaction kettle(nuclear reactor) is a kind of container widely used in industry, which can be used for solid dissolution, product mixing, chemical reaction, batch distillation, crystallization, extraction and polymerization and other processes.

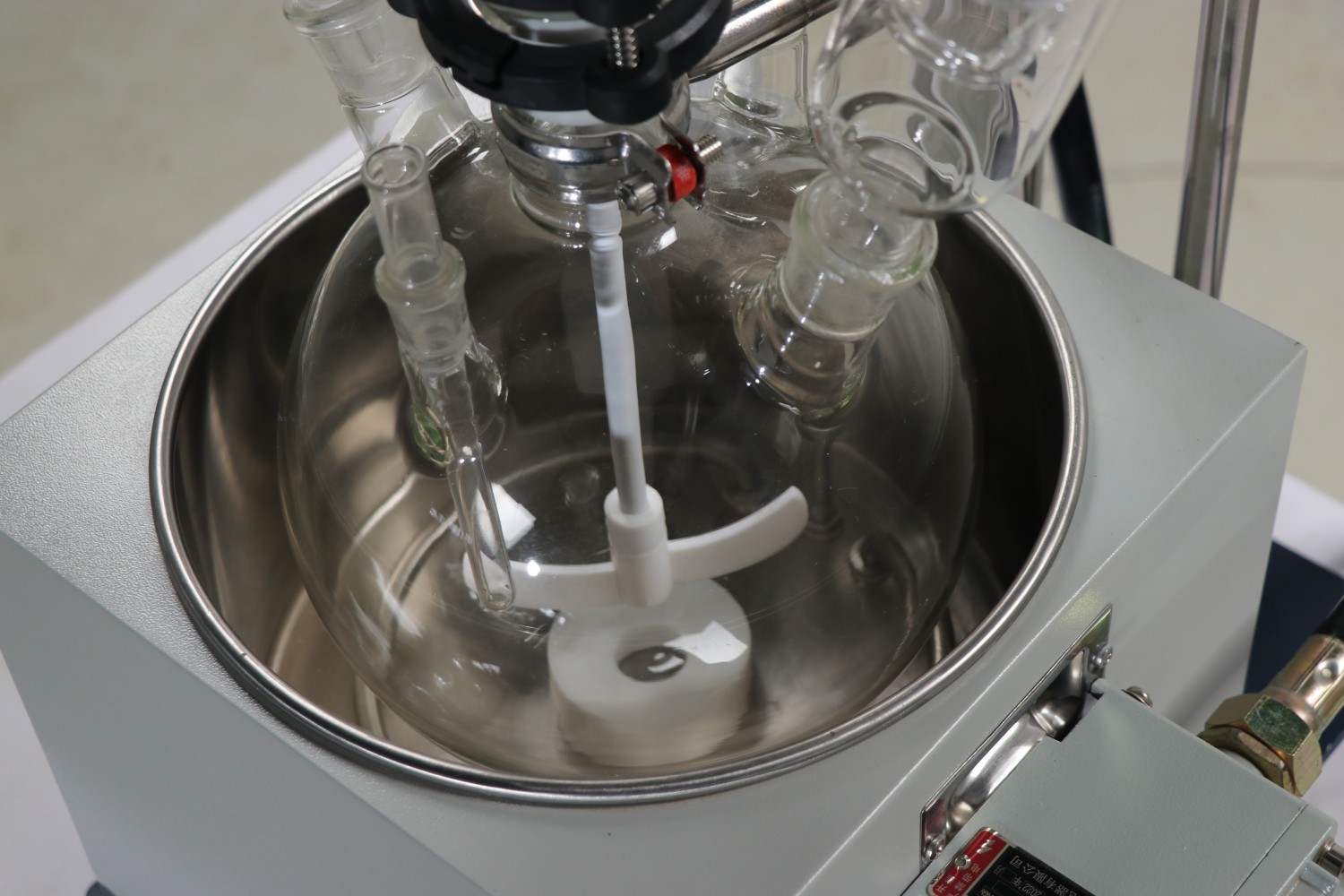

The single layer glass reactor(nuclear reactor) is equipped with a stainless steel bath, in which the experiment can be completed under constant temperature conditions, directly adding water or oil to the reaction glass container for heating.It's easy to operate and very convenient.

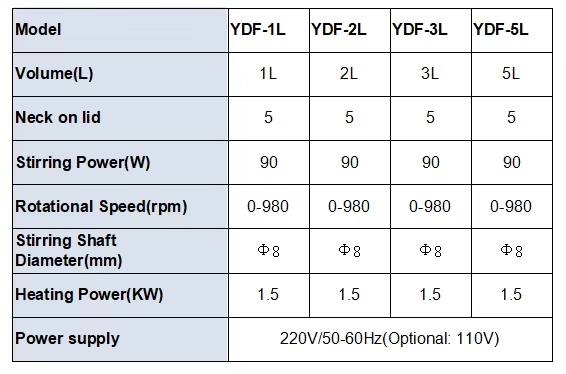

Detail Specs
| Item No. | YDF-10L | YSF-20L | YSF-50L |
| Vessel Capacity(litre) | 10L | 20L | 50L |
| Heating Power KW | 3.5 | 5 | 8 |
| Motor Power(W) | EX120/300 W | EX180/300W | EX300/300W |
| Stirring Speed(rpm/M) | 0~600 | 0~600 | 0~800 |
| Stirring Shaft Diameter(mm) | Φ15 70H(cm) Blade Span 16cm | Φ15 70H(cm) Blade Span 20cm | Φ15 75H(cm) Blade Span 205mm |
| Stirring Shaft Diameter(mm) | Φ15mm Blade Span 160mm | Φ15mm Blade Span 205mm | Φ17mm Blade Span 205mm |
Features
1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable;
2. All glass parts are made of high bro 3.3, with good chemical and physical properties; big bottle mouth design, hand-in cleaning;

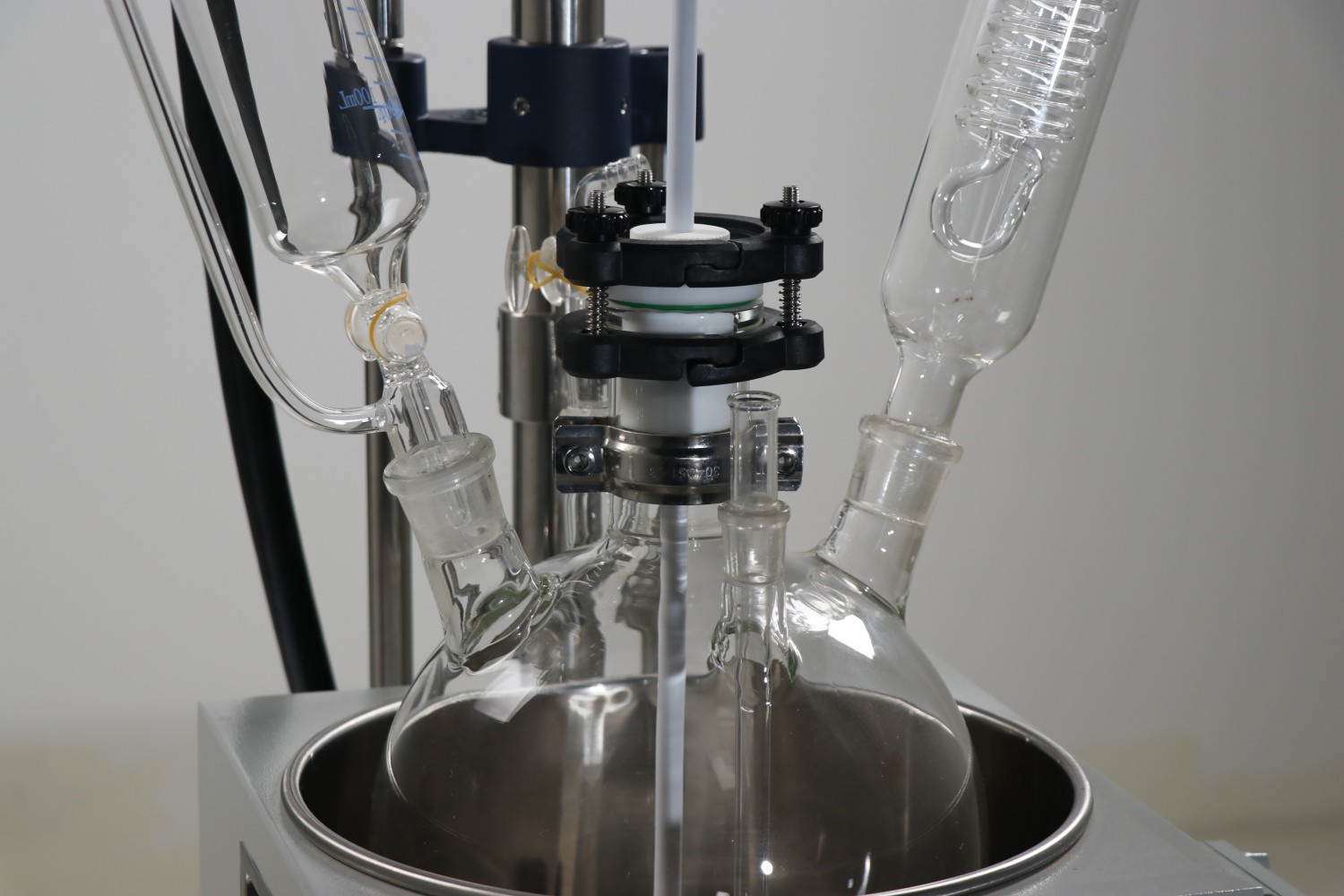

3. PTFE mechanical component sealing, it can get the best vacuum degree among the similar products in the market;
4. Overall stainless steel frame structure, compact and solid, stable and reliable without shaking when mixing;
5. The PTFE discharge valve without dead corner;
6. Computer controlled thermostatic oil bath, intelligent PID control, temperature control is accurate and convenient;
7. Distillation, reflux can be simultaneously;
8. Explosion-proof series available.
Feature:1.Vessel capacity is flexible from 1L-200L; Suitable for lab reasearch and pilot plant.

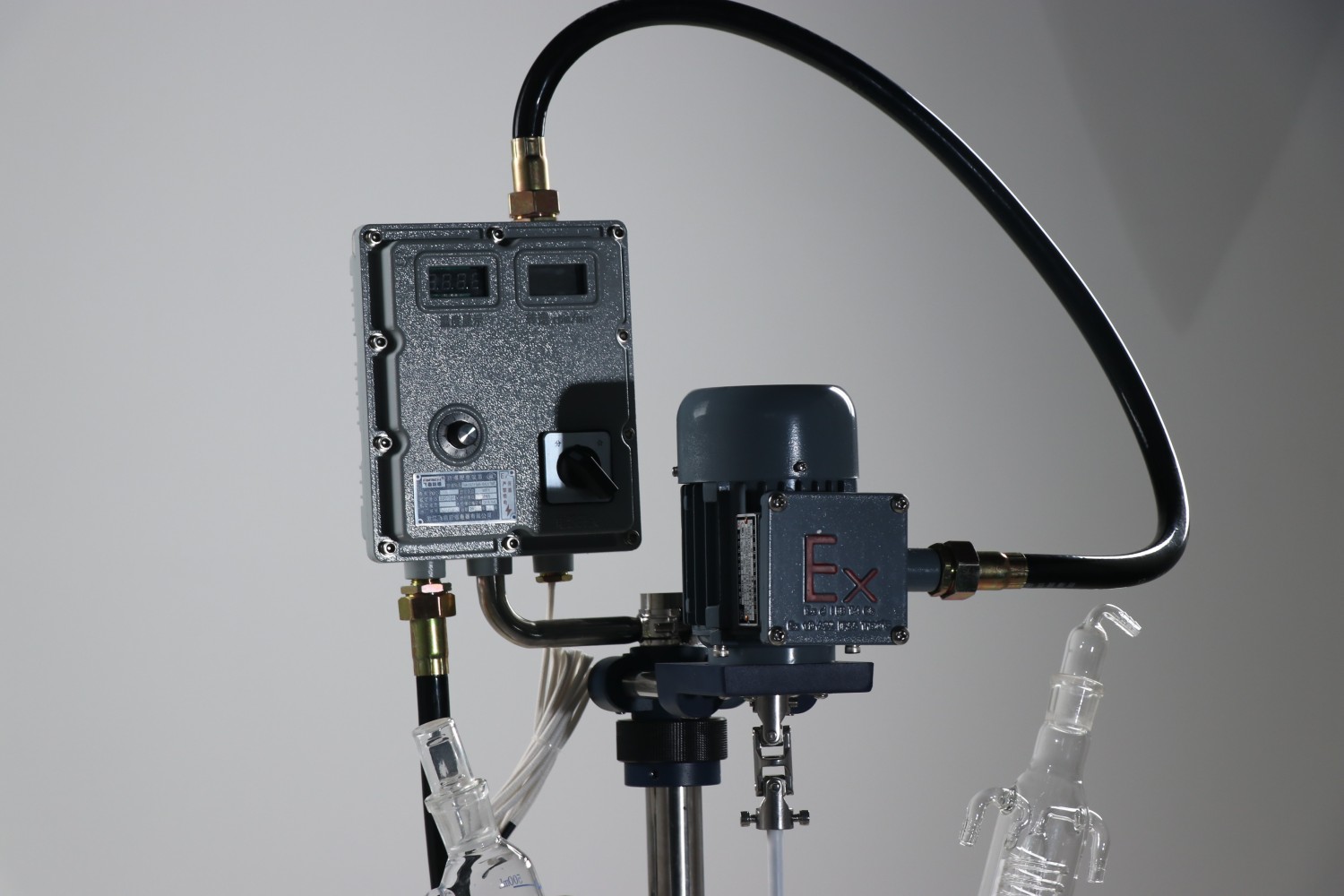

Feature 2: Explosion-proof motor and AC servo motor optional, strong stirring;
Feature 3: More than 5 agitator blades,suitable for widely viscosity range.
How a Single-layer Glass Reactor Works？
The single-layer glass reactors work through the oil bath pot called the tank, and in a constant temperature that can either be low or high temperature. The reactor can process stirring reactions in the vacuum, condensation and distillation reaction processes, extracting and separation, and heat of response experiments.
Water can be passing through the system by condensing coil around the oil collector to achieve the results of the faster cooling process, the reaction of the contents inside the reactor, and controlling the rate of reacting solution from evaporation and reflux.
When the reaction is complete, the contents can now be released by opening the reactor’s lid or discharger port.
