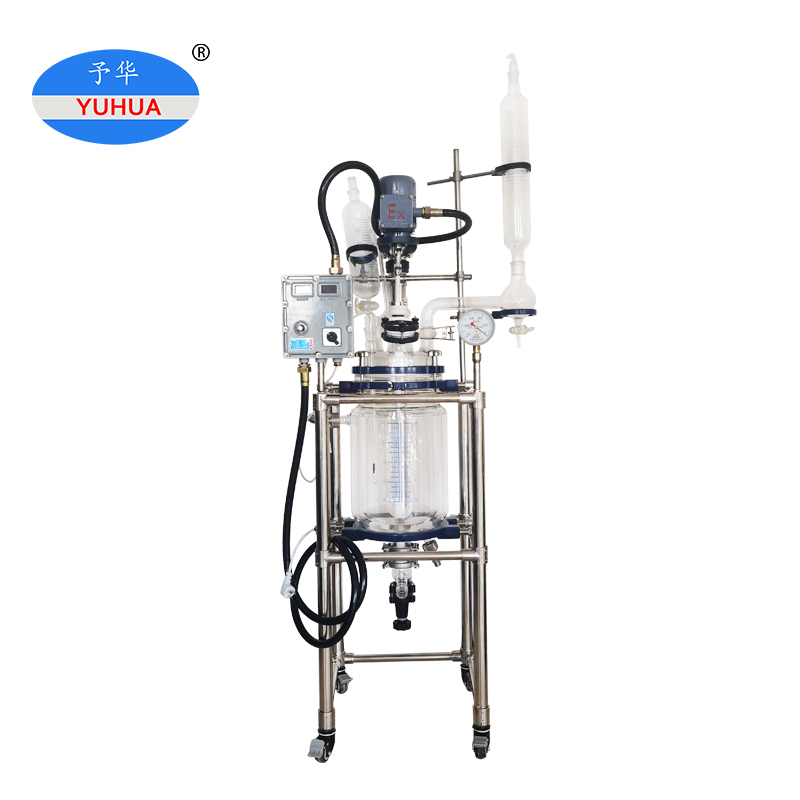

YSF-10L Jacketed Glass Reactor(EX)

Product introduction

1. Glass Reactor is the advanced product in the world,practical,have tiple elastic design for the support, Ensure bear the heavy load response operations, and compatible with safety upgrade transformation.
2. Glass Reactor is using high borosilicate glass material (GG17), have excellent physical and chemical properties.
3.using temperture from -80degree to 200degree.

4.The suppor surface coating, fluorine, corrosion resistance, make the machine beautiful and have long time using life(can choose spraying plastics according to the customers' requirement).

5. Advanced frequency control of motor speed, frequency conversion controller, the internal components with vacuum coating protection, anti-corrosive, can choose the explosion-proof, safe and reliable.

6.Kettle body have double layers, it is the heat source between the layer, cooling fluid for reaction. The three layers kettle body, the first layer is vacuum thermal insulation kettle body, a second interlayer supply heat and cold for reactor.Transparent reaction bottle, can make the reactor process must be clear .

7.Sealed by PTFE assembly,special design,make sure the machine have the best vacuum (-0.098MPA more or less),emptying valve can unload dope and micro-solid materials,it is the leader of the world.
8. Control device by jacketed pressure,it is the new technology for the kettle body protection, make the work more safe and reliable.
9. The designed for jacketed and kettle chamber no dead angle,corrosion resistance,non-pollution structure.
10.After finished the reflection, the heat transfer medium can be completely ruled out, no effusion.
11. Glass lined Reactor Still have the science structure,beautiful, practical, it is the leading domestic.

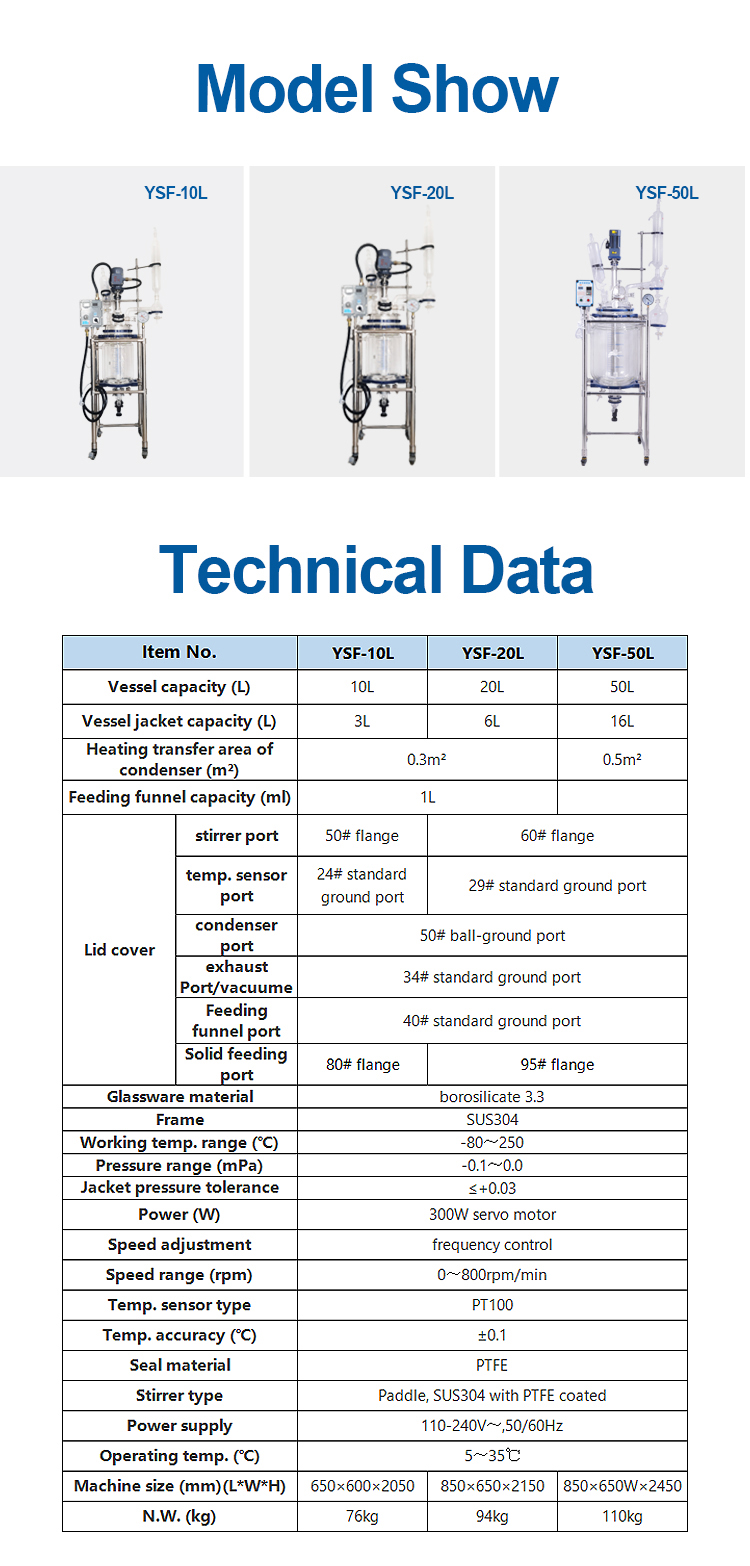

Product specification
